Friday, February 28, 2014

Recent Deliveries - St. John's, NL

On August 26, 2013, the St. John's Regional Fire Department in St. John's, NL took delivery of their latest Metalfab Fire Truck.  This Single Axle Tanker is the Department's eighth Metalfab unit.


The chassis utilized in this build was an International 4400 SBA Two Door Chassis.  The chassis was equipped with an International Maxx Force 9 330 HP Diesel Engine and an Allison EVS 3000 Automatic Transmission.

This tanker didn't have a pump installed.  It was equipped with two CET Portable Pumps.  It also had a 10" Newton Dump with a rotating and telescopic and a 4" Direct Fill installed at the rear of the unit.

The Emergency Warning Light package on this tanker was a Federal LED System.  It consisted of an Aerodynic LED Light Bar, Sentry Rear Beacons, and Federal Quadra Flare LED Intersection Lights.

The single axle tanker body was of an Extruded Aluminum Construction.  The body featured low side compartments on both sides of the unit.  The doors utilized for this tanker were flush mount aluminum doors.  At the rear of the unit, there were rear access storage compartments for suction hose, a portable tank, and sliding trays for hose storage.



Metalfab would like to thank the St. John's Regional Fire Department for the purchase of their latest Metalfab unit.





Thursday, February 27, 2014

Throwback Thursday - Dartmouth, NS - 1992 Top Mount Pumper

A 1992 Metalfab Top Mount Pumper delivered to the Dartmouth Fire Department is today's featured unit for Throwback Thursday.   This unit was one of two pumpers delivered to the Dartmouth Fire Department in 1992.

This top mounted pumper was mounted on a Ford CF8000 Single Axle Chassis.  The chassis featured a Ford 7.8L Ford 240 HP Diesel engine and an Allison MT643 Transmission.  Metalfab fabricated and installed a four man enclosed crew area mounted behind the chassis cab.

The pump for this unit was a 1050 IGPM Hale QSG Midship Pump.  The pump panel was in a top mount configuration.  The Foam System was a Foam Pro 2000.  The poly tank had a capacity of 500 Imperial Gallons of water.  It also had a foam cell of 10 Imperial Gallons and one foam cell of 30 Imperial Gallons.

The Aluminum Body featured high side compartments on the left side of the unit and low side compartments on the right side.



Friday, February 21, 2014

Recent Deliveries - East Zorra - Tavistock, ON (Tavistock Station)

The Tavistock Station of the East Zorra - Tavistock Township Fire Department took Delivery of this Metalfab Tandem Pumper/Tanker on July 24, 2013.  This unit was the third unit purchased by the township but it was the first Metalfab unit at the Tavistock Station.


This tandem Pumper/Tanker was installed on a Freightliner M2 106 Four Door Chassis.  The chassis was equipped with a Cummins ISL 350 HP Diesel Engine and a Allison EVS 3000 Automatic Transmission.  The chassis was complete with Aluminum wheels and dual fender mounted air horns with dual lanyard controls overhead in the interior of the cab.

The pump on this unit was a Hale PSD 840 IGPM PTO Driven pump.  Where this was a PTO Driven pump, it had Pump and Roll Capability.  All piping was stainless steel and the pump panel was in a side mount configuration.  The Poly Water Tank had a capacity of 2,500 Imperial Gallons.  The truck was also equipped with a 10" Newton dump with Rotating and Telescopic chute and Two 4" Direct Tank Fills at the rear of the unit.



The extruded aluminum body featured a combination of high side and low side compartments on the
left side of the unit.  The right side of the unit had a combination of intermediate and low side compartments.  Rear Access to the main hose bed was achieved by a Zico Quic Ladder.  On the left side fender top a portable tank was stored in a manual drop down rack.  The right side fender top had a manual drop down ladder rack.


Metalfab would like to thank the East Zorra - Tavistock Township Fire Department and the Tavistock Station for choosing Metalfab to manufacture this new Pumper/Tanker.

Thursday, February 20, 2014

Throwback Thursday - Oromocto, NB - 1990 Metalfab Custom Pumper/Tanker

Today's featured truck for Throwback Thursday is a 1990 Metalfab Custom Pumper/Tanker manufactured for the Oromocto Fire Department.


The chassis for this build was a 1990 Spartan Gladiator MFD Custom Chassis.  The engine was a Detroit Diesel 8V-92TA 450 HP Diesel Engine.  The Transmission was an Allison HT-741 Automatic Transmission.

The Aluminum Body featured High Side Compartments on the Left Side of the unit and Intermediate height compartments on the right side of the unit.  A manual drop down ladder rack was installed on the right side fender top.

This truck was equipped with a Hale QSMG Midship Pump.  The pump had a capacity of 1500 IGPM.  The poly tank for this unit had a capacity of 1500 Imperial Gallons of water and 100 Imperial Gallons of Foam.  Flowmeters were installed on all 1-3/4" discharges and the monitor discharge.


In recent years, this unit has had several modifications and is currently still in service with the Oromocto Fire Department.




Friday, February 14, 2014

Recent Deliveries - River John, NS

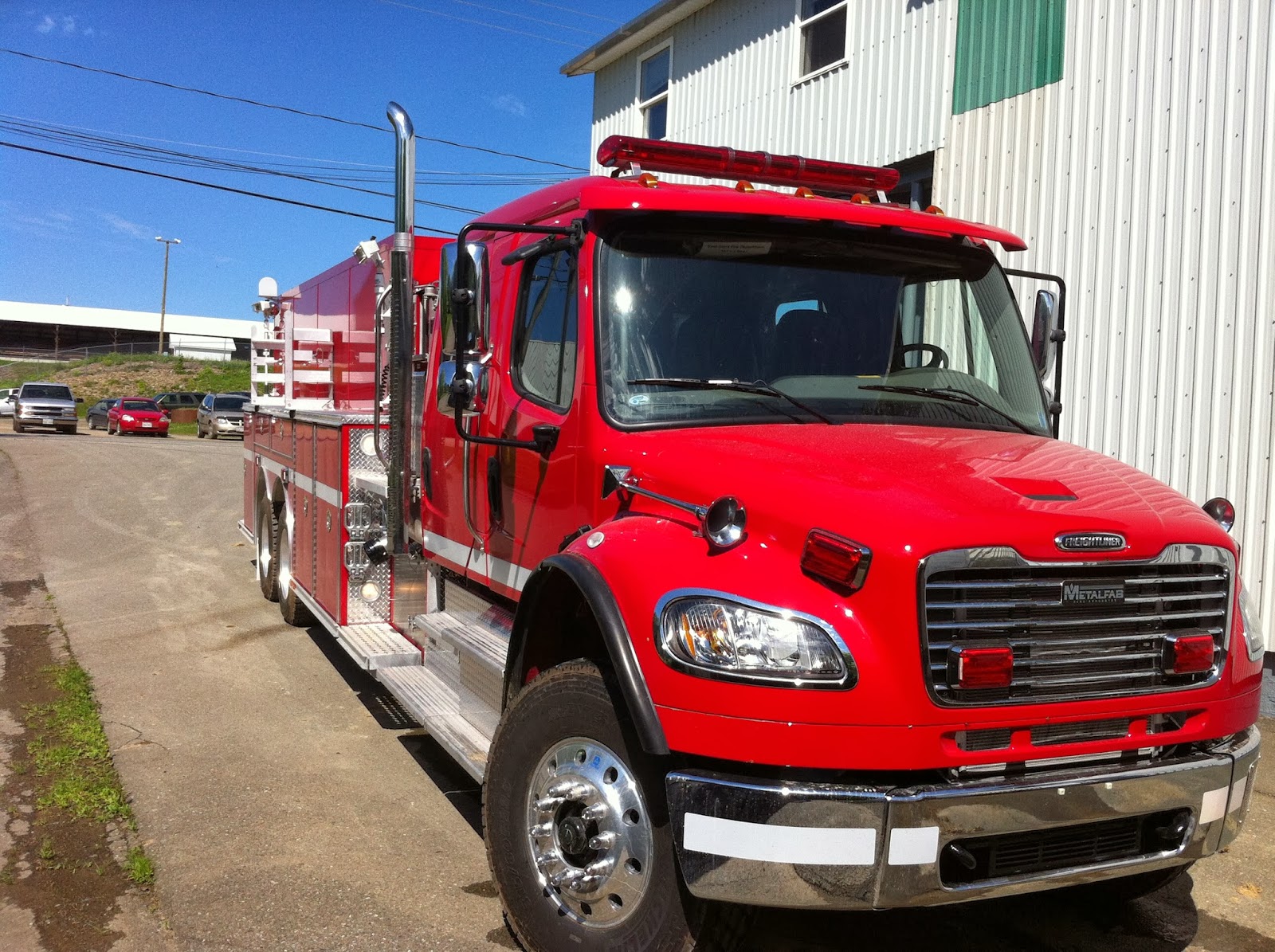

The River John, NS welcomed their newest Metalfab Unit to its Fleet of Fire Apparatus on July 10, 2013.  This Metalfab Tandem Pumper/Tanker is the Fourth Metalfab unit that the Department has purchased.

This tandem axle tanker was installed on a Freightliner M2 106 Tandem axle two door chassis.  The chassis was equipped with a 350 HP Cummins ISC Diesel engine and a Allison EVS 3000 Automatic Transmission.


This Pumper/Tanker was equipped with a Hale QFLO 1050 IGPM.  The pump panel was a side
mount type.  Each 6" Steamer port was equipped with a Hale Manual MIV (Master Intake Valve).  The water tank had a capacity of 2,500 Imperial Gallons.  At the rear of the unit, a 10" Newton Dump with rotating and telescopic chute and a 4" direct fill were installed.  There was also a 1" valve installed at the rear for filling of Back Pack Tanks for grass fires.


The extruded aluminum body featured Low Side compartments on the left side of the unit and intermediate height compartments on the right side.  The truck was equipped with a Whelen LED Warning Light package.  The doors on the body were a combination of Amdor Roll Up Doors and flush mount doors.  The truck had rear access storage compartments for a 3,000  Gallon Portable tank on the left side of the unit and had rear access storage for a 24'-00" 2 section ladder, a 14'-00" roof ladder, a 10'-00" attic ladder and 2 pike poles on the right side of the unit.  The truck also had storage compartments for wheel chocks in the left side rear wheel well area.

Metalfab would like to thank the River John Fire Department for this recent purchase.

Thursday, February 13, 2014

Throwback Thursday - Saint-Pierre, Saint Pierre et Miquelon - 1996 Metalfab Rescue Unit

This 1996 Metalfab Rescue Vehicle for the Ville de Saint-Pierre, Saint-Pierre et Miquelon is this week's featured unit.









This Ford F350 4x4 chassis was equipped with a 13'-00" Extruded Aluminum Body.  The unit featured exterior compartments with roll up doors.  It also featured a deep hosebed area for the storage of hose.  Ladders were stored in racks mounted above the body.

Friday, February 7, 2014

Recent Deliveries - Murray River, PE

On June 27, 2013, a new pumper was delivered to the Murray River, PE Fire Department.  This unit was built as a Metalfab Demo Unit.



The side mount pumper body was mounted on a Freightliner M2 106 Four Door Chassis.  The chassis was equipped with a Cummins ISC - 350 HP Engine and an Allison EVS 3000 Automatic Transmission.


The pump on this unit was a Hale QFLO 1050 IGPM Midship pump.  The truck also had a Foam Pro 2001 Foam System installed.  The water tank on the unit had a capacity of 1,000 Imperial Gallons.



The extruded aluminum body consisted of high side compartments on the left side of the unit and low side compartments on the right side.  A portable tank was stored in a manual drop down rack located on the right side fender top.  Ladder storage was located in a slide way in the main hose bed of the unit.



Metalfab would like to thank the Murray River Fire Department for choosing us as the supplier of their new pumper.


Thursday, February 6, 2014

Throwback Thursday - Waterford, VT - 2002 Metalfab Single Axle Tanker

A 2002 Metalfab Single Axle Tanker is this week's Throwback Thursday featured truck.  This unit was delivered to the Waterford, VT Fire Department on November 12, 2002.



This unit was mounted on a Sterling Acterra chassis which was equipped with a CAT 3126 300 HP Diesel engine and an Allison 3060P Automatic Transmission.

This truck was equipped with a Hale DSD 1,000 USGPM Pump.
The water tank capacity on this unit was 1,800 US Gallons.  A 10" Newton dump with a slip on elbow and chute were installed on the rear of the unit.

The body featured low side compartments on the left side of the body with a high front compartment.  The right side had low side compartments.  This unit had AMDOR Roll up Doors.
